OUR PRODUCTS

1. Standby proposed structural wall opening, overhead lintel and plinth (optional).

2. Unpack and standby SLIDEHIDE casing for installation.

3. Anchor the SLIDEHIDE casing within the structural opening. The gaps between the track/casing and brickwall will be grouted with cement-sand.

4. Cement-sand render is trowelled onto the brickwall and steel casing surface. Lay fine-mesh along the grouted cement-sand to minimize plaster cracks.

5. After floor and wall finishes is completed, standby to fix door frame and door panel.

6. Installation sequence is completed.

1. Standby proposed structural wall opening, overhead lintel and plinth (optional).

2. Unpack and standby SLIDEHIDE casing for installation.

3. Anchor the SLIDEHIDE casing within the structural opening. The gaps between the track/casing and brickwall will be grouted with cement-sand.

4. Cement-sand render is trowelled onto the brickwall and steel casing surface. Lay fine-mesh along the grouted cement-sand to minimize plaster cracks.

5. After floor and wall finishes is completed, standby to fix door frame and door panel.

6. Installation sequence is completed.

Model

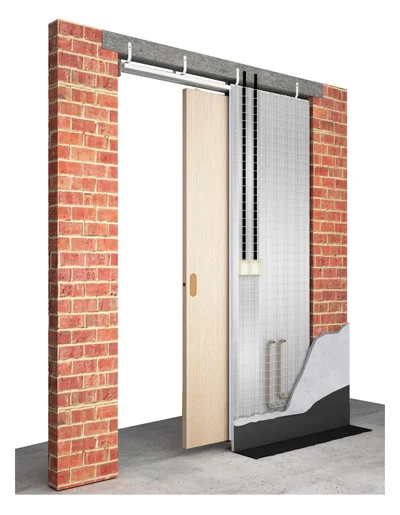

SLIDEHIDE WET-Wall Model

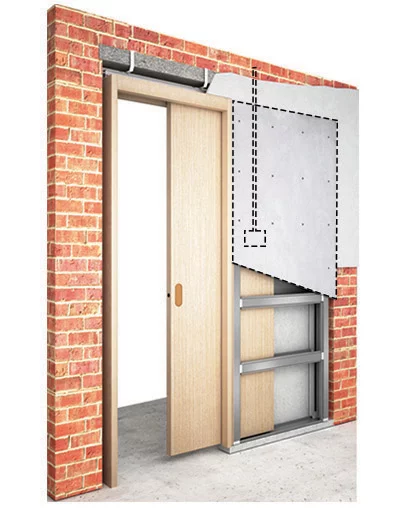

CAVIWALL Model

Casing Design Structure

Finished Wall Thickness

Wall Finished Material

Cement-sand plaster finished

Partition-board finished

Main Application

For WET-Wall Construction

For both WET & DRY Wall Construction

Packaging

Assembly Method

Whole casing require to assemble in the factory.

Whole casing can be assembled in factory or in job site.

On-site Modification

Casing cannot modify on-site

Yes, casing can be modified on-site

Maximum Door Height

3.00 m

3.00 m

1 DOOR in 1 POCKET

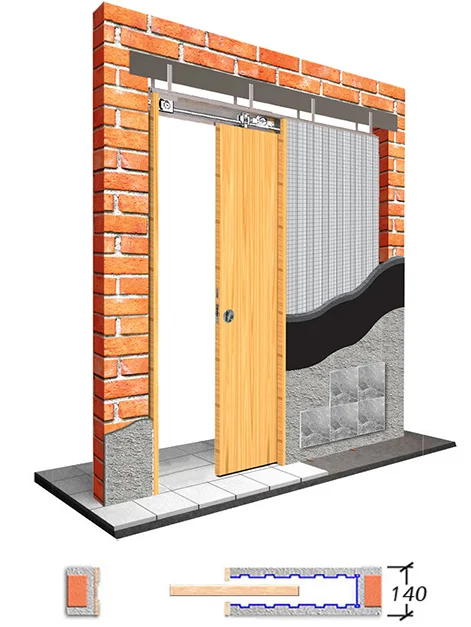

1 DOOR in 1 POCKET - SELF CLOSE

1 DOOR in 1 POCKET - AUTO CLOSE

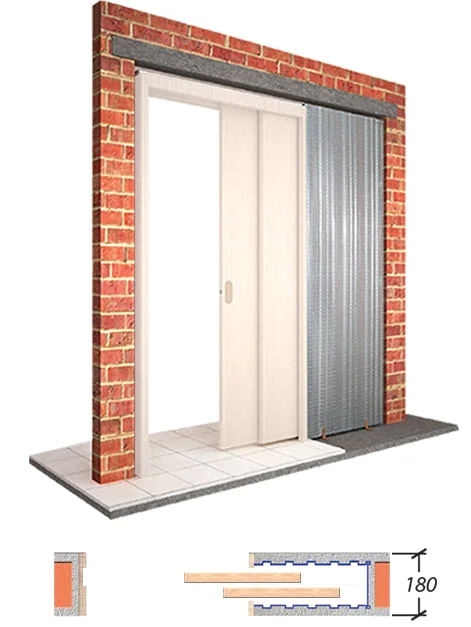

2 DOORS in 1 POCKET

2 DOORS in 1 POCKET - TELESCOPIC

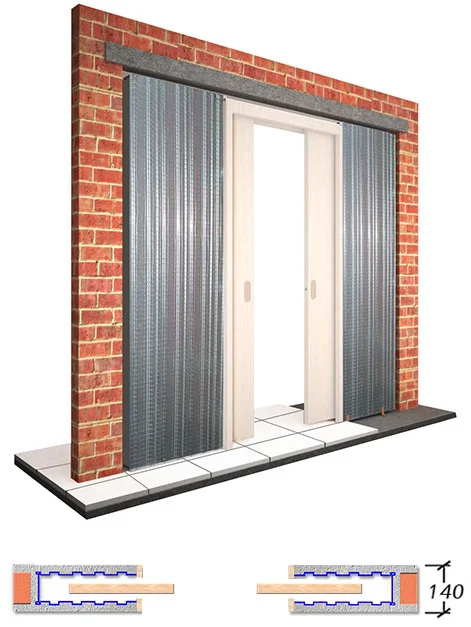

2 DOORS in 2 POCKET

2 DOORS in 2 POCKET - SYNCHRO

4 DOORS in 2 POCKET

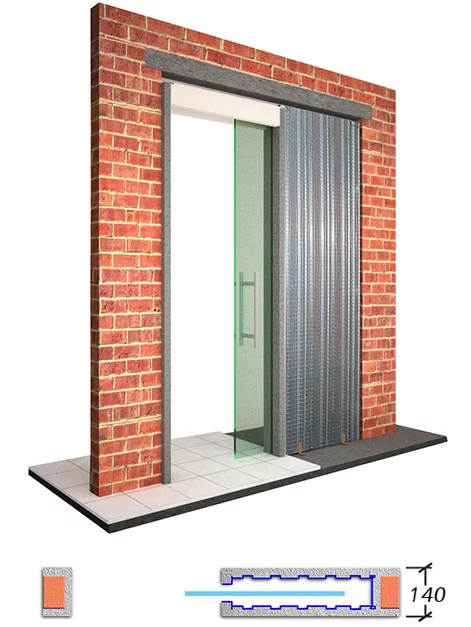

1 FRAMELESS GLASS DOOR in 1 POCKET

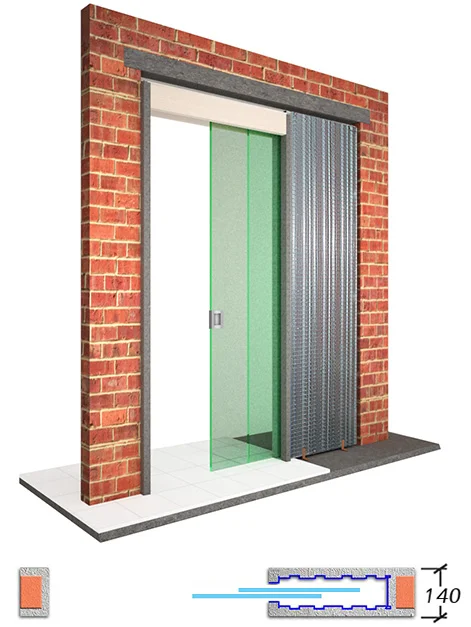

2 FRAMELESS GLASS DOOR in 1 POCKET

2 FRAMELESS GLASS DOOR in 2 POCKET

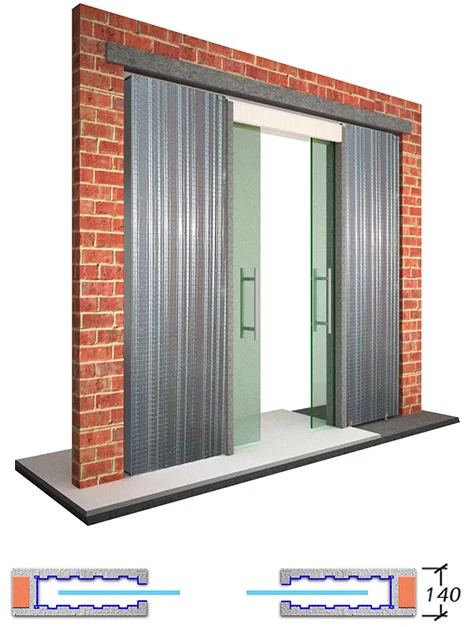

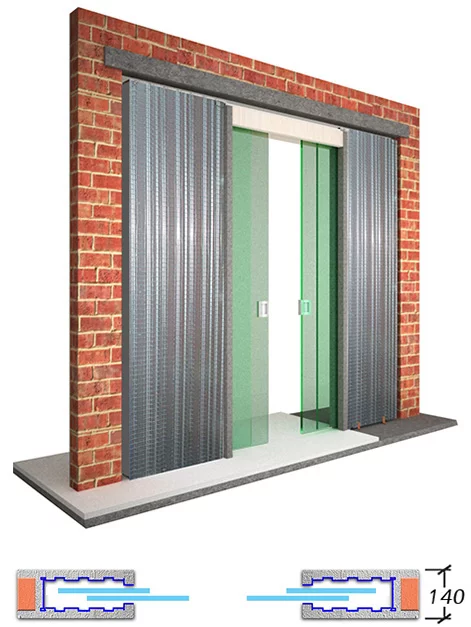

4 FRAMELESS GLASS DOOR in 2 POCKET

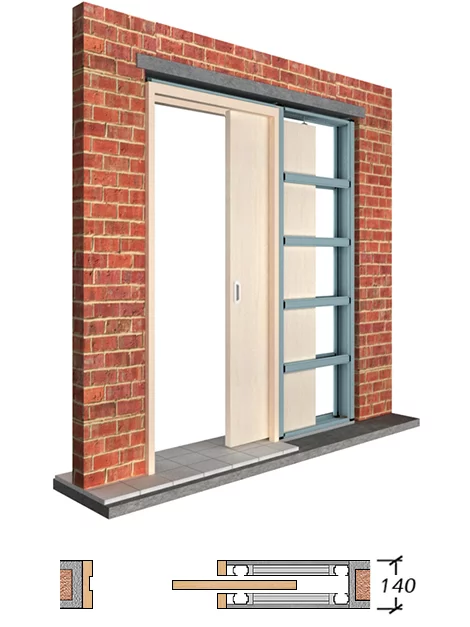

1D1B-WW 1 DOOR in 1 BOX

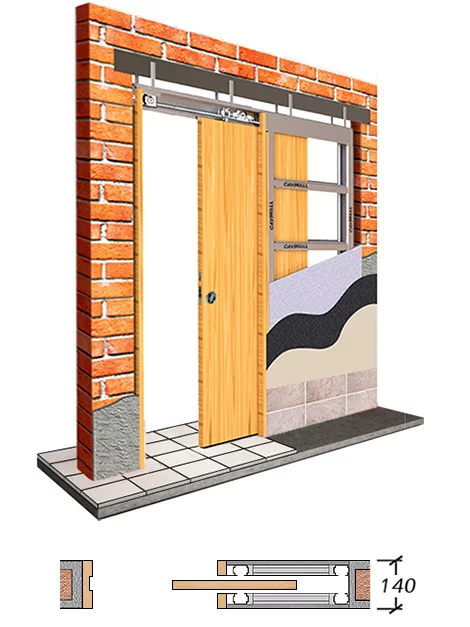

1D1B-SC80-WW 1 DOOR in 1 BOX - Self Close

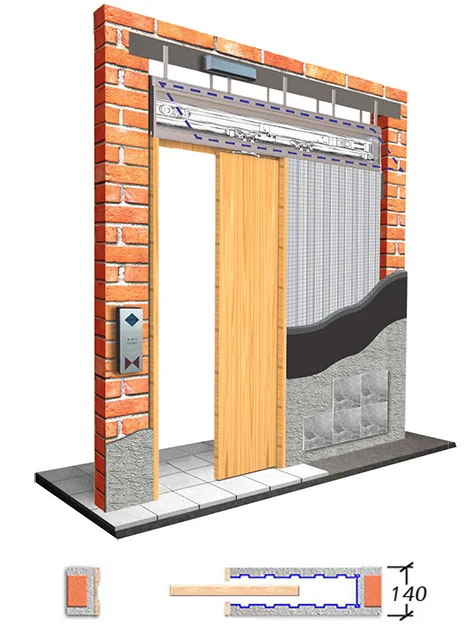

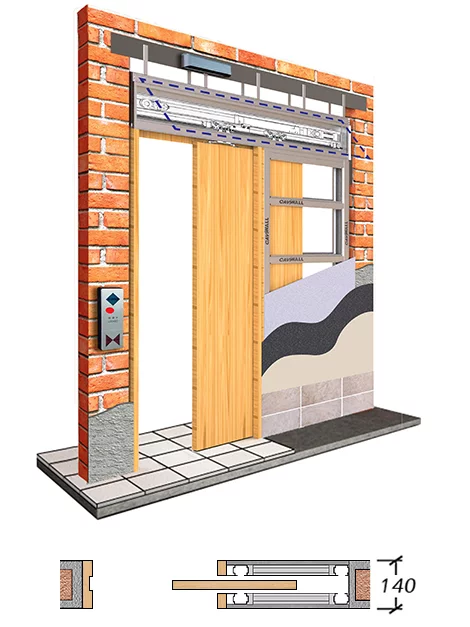

1D1B-Auto-WW 1 DOOR in 1 BOX - Auto Close

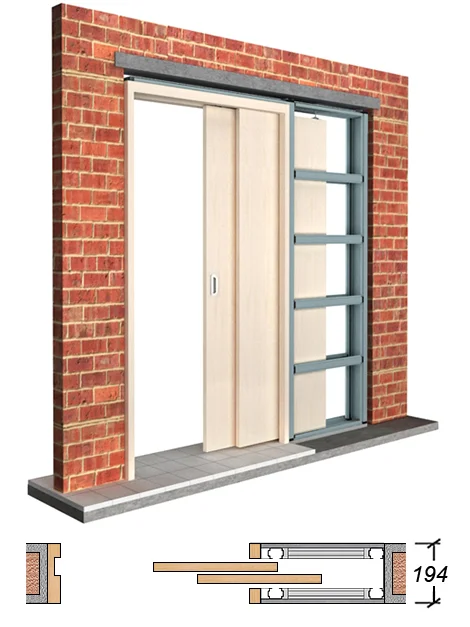

2D1B-WW 2 DOORS in 1 BOX

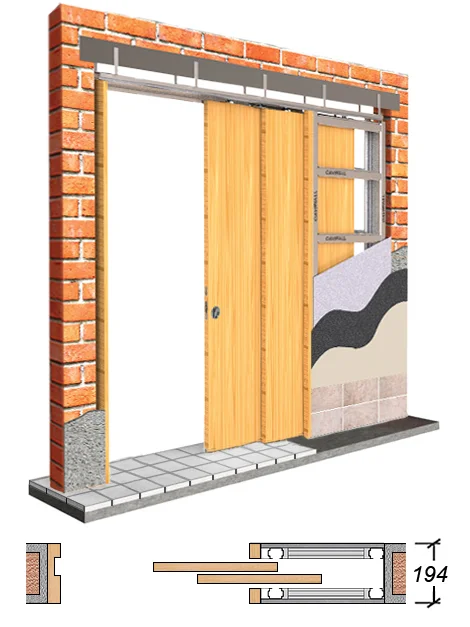

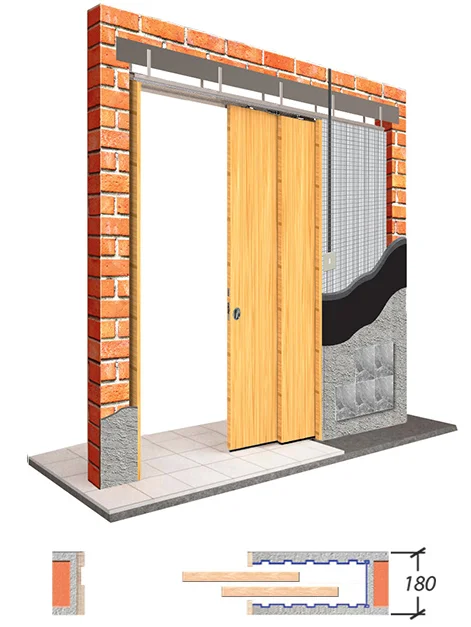

2D1B-Tele-WW 2 DOORS in 1 BOX - Telescopic

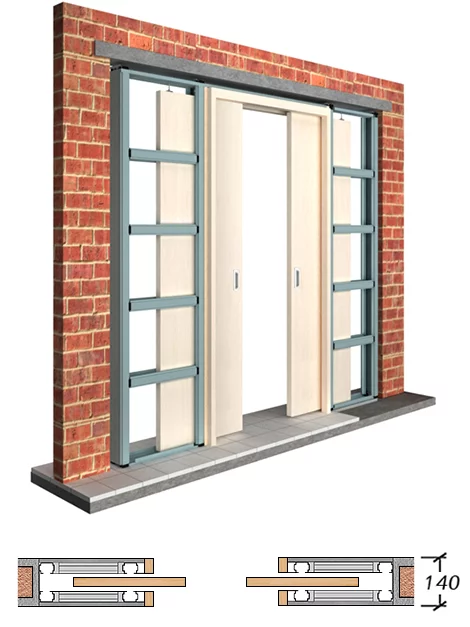

2D2B-WW 2 DOORS in 2 BOX

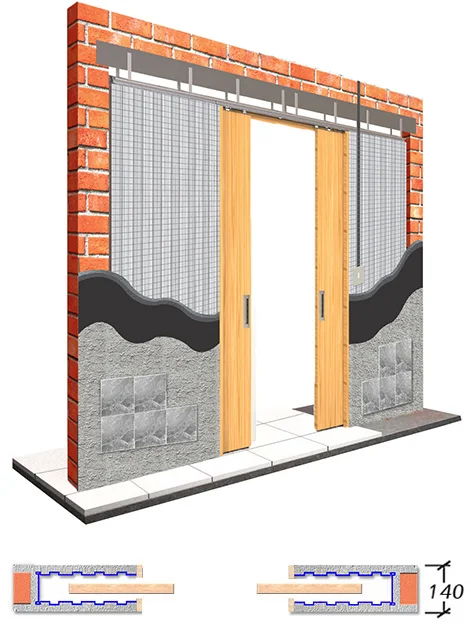

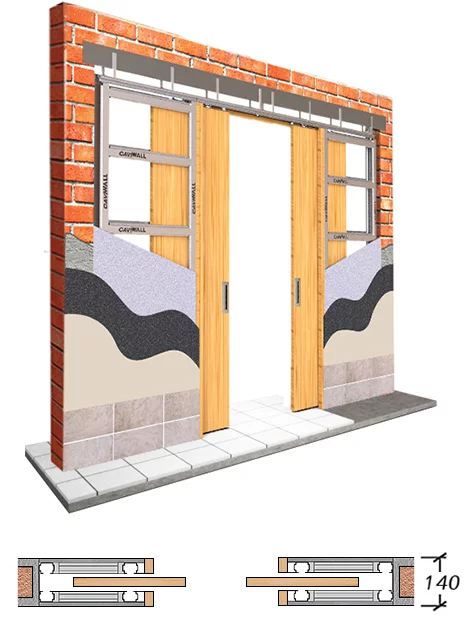

2D2B-Sync-WW 2 DOORS in 2 BOX - Synchro

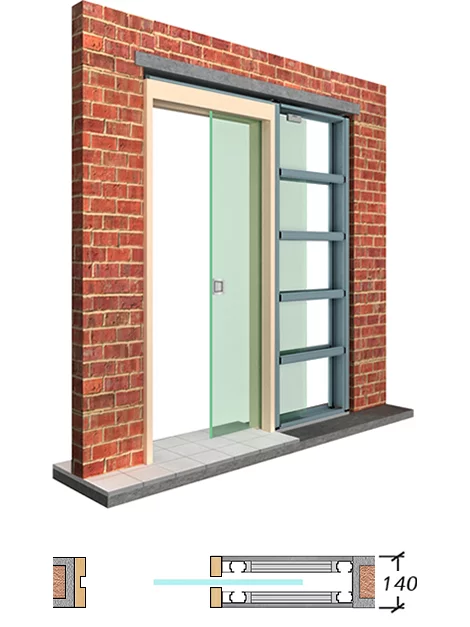

1D1B-F-WW 1 DOOR in 1 BOX - Frameless glass door

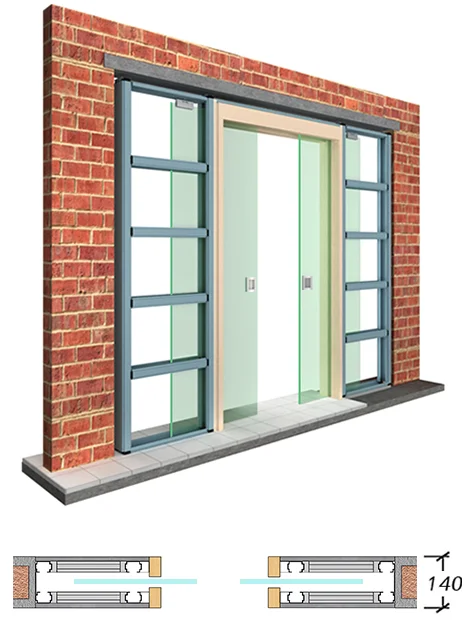

2D2B-F-WW 2 DOORS in 2 BOX - Frameless glass door

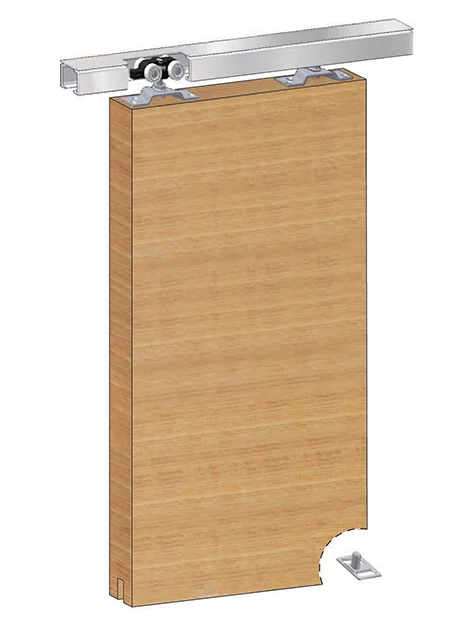

1D1T 1 Door 1 Track

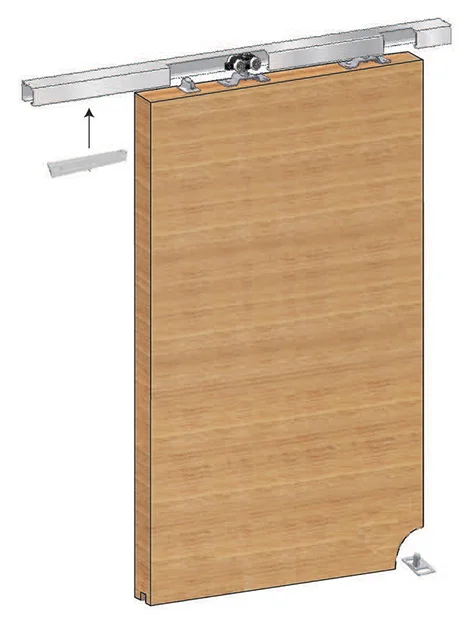

1D1T-SB 1 Door 1 Track - Soft Brake

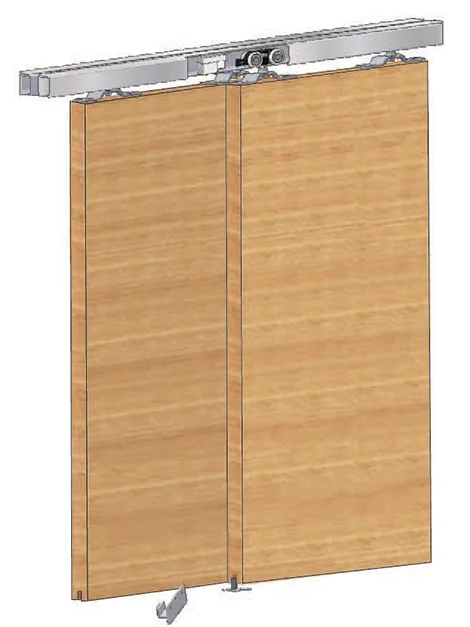

2DDT 2 Doors Dual Track

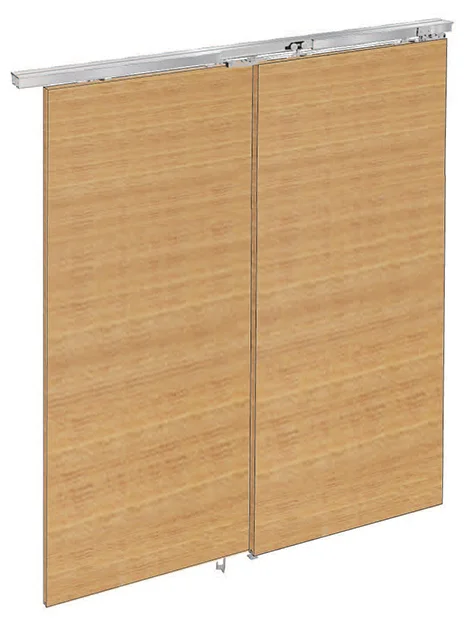

2DDT-TELE 2 Doors Dual Track - Telescopic

2D2T-SYNC 2 Doors 2 Tracks - Synchro

1D1T-F 1 Door 1 Track - Frameless glass

1D1T-F-SB 1 Door 1 Track - Frameless glass - Soft Brake

2DDT-F 2 Doors Dual Track - Frameless glass

SLIDEHIDE Magnetic Lockset (SHLK-M)

SLIDEHIDE Round Lockset (SHLK-R)

Soft-braking Device

This optional item is used in conjunction with our SLIDEHIDE or CAVIWALL model to prevent the door panel from slamming against the end door frame. Its soft-brake motion is quiet and smooth. Soft-brake device is easy to install and it can be easily removed without having to take down door panel.

ConcritBoard

A versatile all-in-one cladding board that can be incorporated with our SLIDEHIDE and CAVIWALL system. ConcritBoard is classified as a green label product and has numerous applications ranging from internal to external usage, dry to wet usage, floor, ceiling and roofing whilst maintaining its durability and properties.
